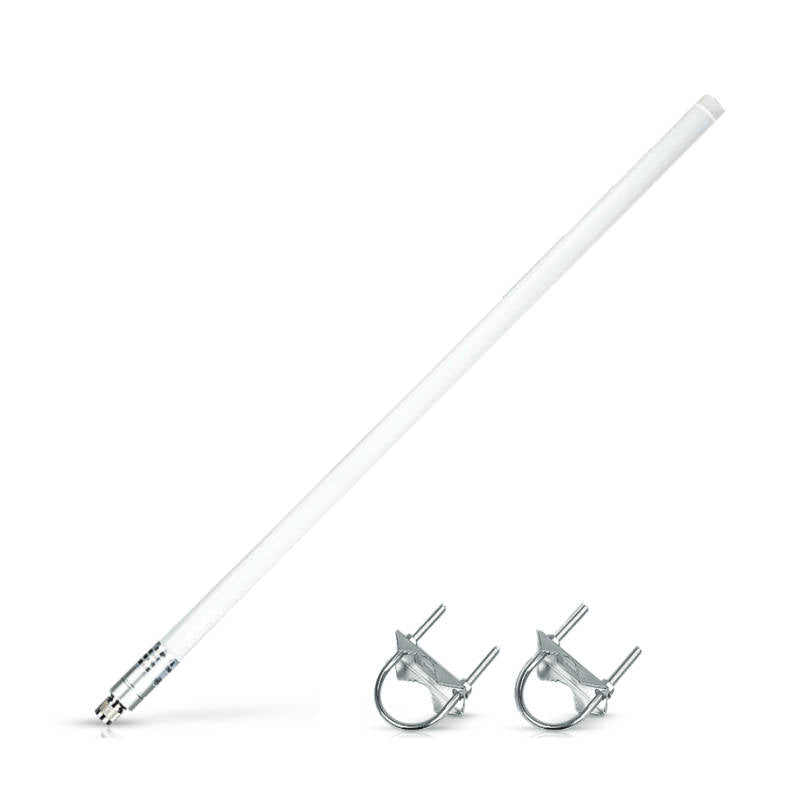

This Fiberglass Antenna is designed for use with devices that require high efficiency and peak gain to deliver best in class throughput on LoRa bands for access points, terminals and small cells. The antenna has a Type N male connector. It is also guaranteed to meet any type of approval or carrier certification requirements.
|
Electrical Specifications |
|
|
3.0 dBi 902-928 Mhz 5.8 dBi 902-928 Mhz 8.0 dBi 902-928 MHz |
|
Polarization |
Vertical |
|
Nominal Impedance |
50Ω |
|
VSWR |
3.0 & 5.8 dBi<2 & 8.0 <1.5 |
|
Mac input power |
2W |
|
Mechanical |
|
|
Planner Dimension |
360mm / 800mm / 1100mm ±10 |
|
Casing |
Fiberglass OD 20mm |
|
Connector |
Type N male |
|
Appearance Colour |
White or Black |
|
Weight |
260g, 490g & 556g |
|
Environmental |
|
|
Temperature Range |
-40°C to 65°C |
|
Humidity |
Non-condensing 65°C 95% RH |
